Narrow-footprint retail display cart designed for merchandising in tight hallway spaces
This custom wall hugger retail display cart was created for St. Jude Children’s Research Hospital in California to solve a specific challenge: how to merchandise effectively in a long, narrow hallway without blocking foot traffic. The solution was a long, slim RMU (retail merchandising unit) designed to hug the wall, maximize vertical space, and provide retail access on three sides.

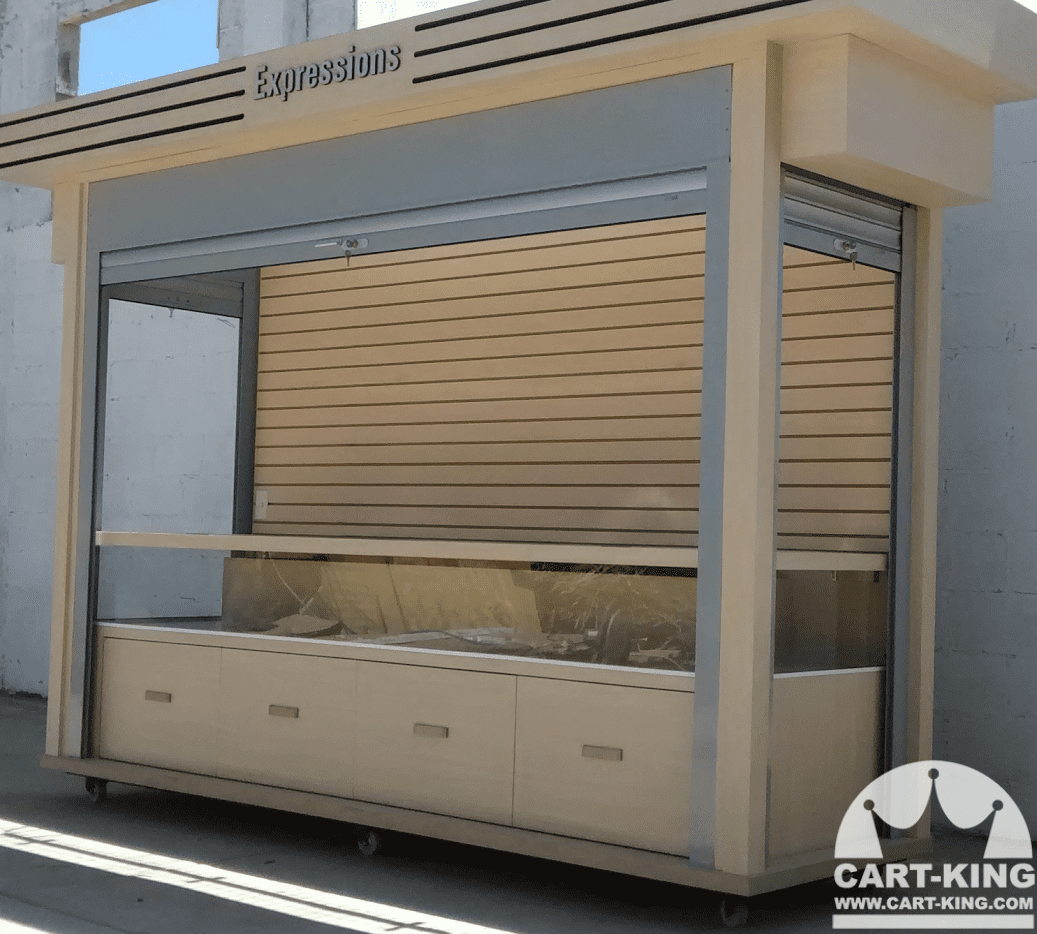

Measuring approximately 10 feet long by 3 feet wide, the cart included slatwall panels, glass display cases, locking storage drawers, and directional canopy lighting. All crafted to deliver maximum retail impact in the smallest possible footprint.
Project Objective
Design a narrow-footprint retail cart with:
- Open access on three sides for hallway use
- Slim dimensions to fit narrow spaces (approx. 10’ L x 3’ W)
- Glass display showcase for jewelry or small goods
- Slatwall panels for flexible merchandise presentation
- Integrated canopy with directional lighting
- Locking storage drawers and secure roll-down doors
Build Features
- Powder-coated steel and aluminum construction
- Slatwall display system for mix-and-match merchandising
- Glass showcase with countertop access for valuables
- Directional lighting integrated into canopy

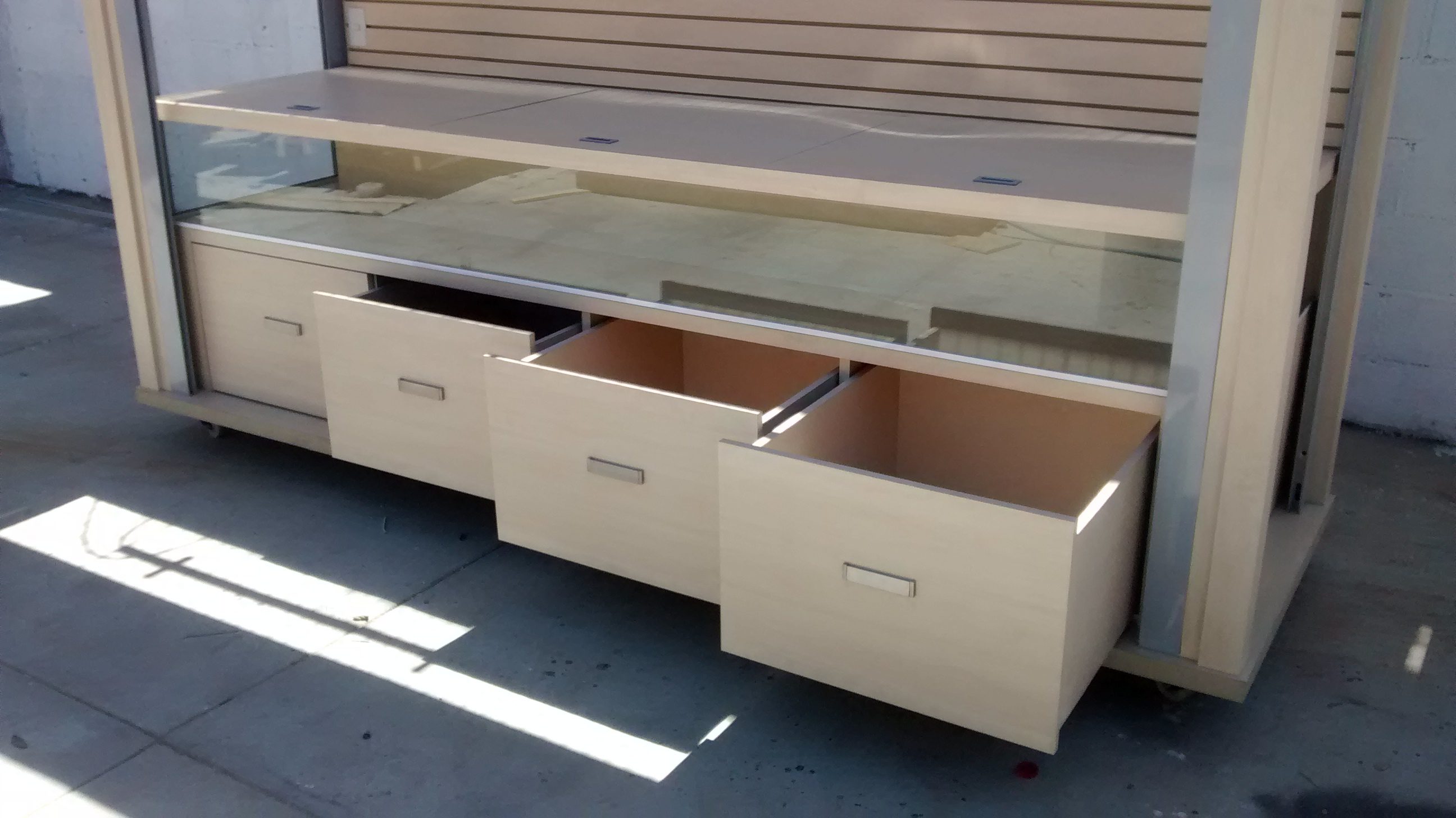

- Locking drawers with nickel-plated handles
- Heavy-duty locking wheels for easy relocation

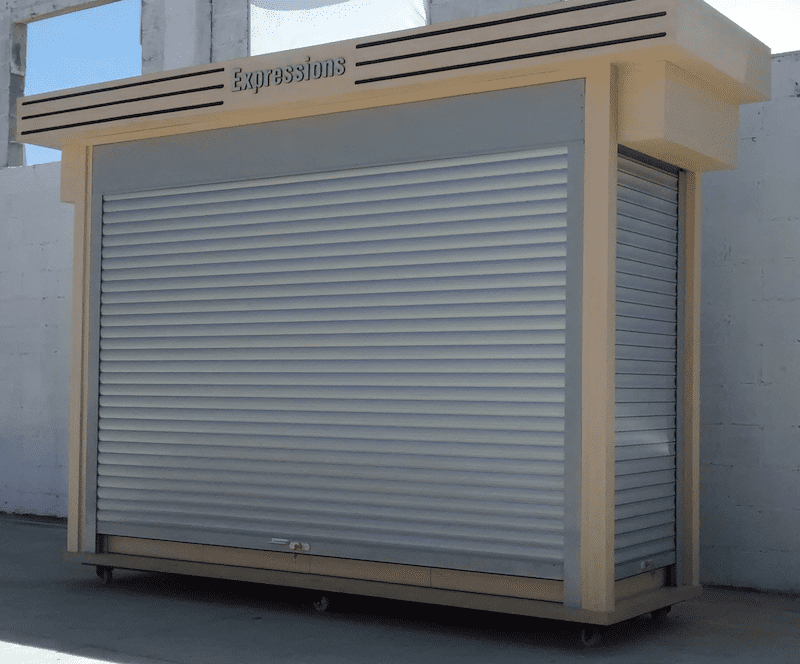

- Extruded aluminum roll-down security doors
Use Case Examples
- Hospital or healthcare gift shops in confined areas
- Narrow mall or concourse retail zones
- Airport walkways or transit hubs with limited space
- Museum or institutional merchandising along corridors
What this cart solves
This cart delivered an efficient, secure, and high-capacity merchandising solution for environments with minimal space. Its narrow design preserved hallway traffic flow while offering ample vertical display and secure after-hours closure. With flexible slatwall panels, glass showcases, and integrated lighting, vendors could highlight a wide range of products without compromising on safety or accessibility.
Planning a narrow-footprint retail display?
Cart-King no longer offers this model as a custom build, but this project showcases our expertise in designing specialized merchandising units for challenging spaces.
We now offer prefabricated retail display carts ready for immediate purchase and branding. If you’re planning a mobile or space-efficient retail setup, this archived project shows what’s possible.
