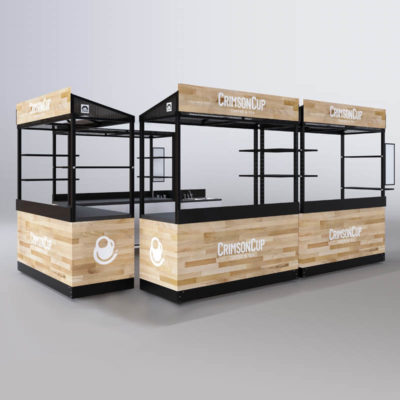

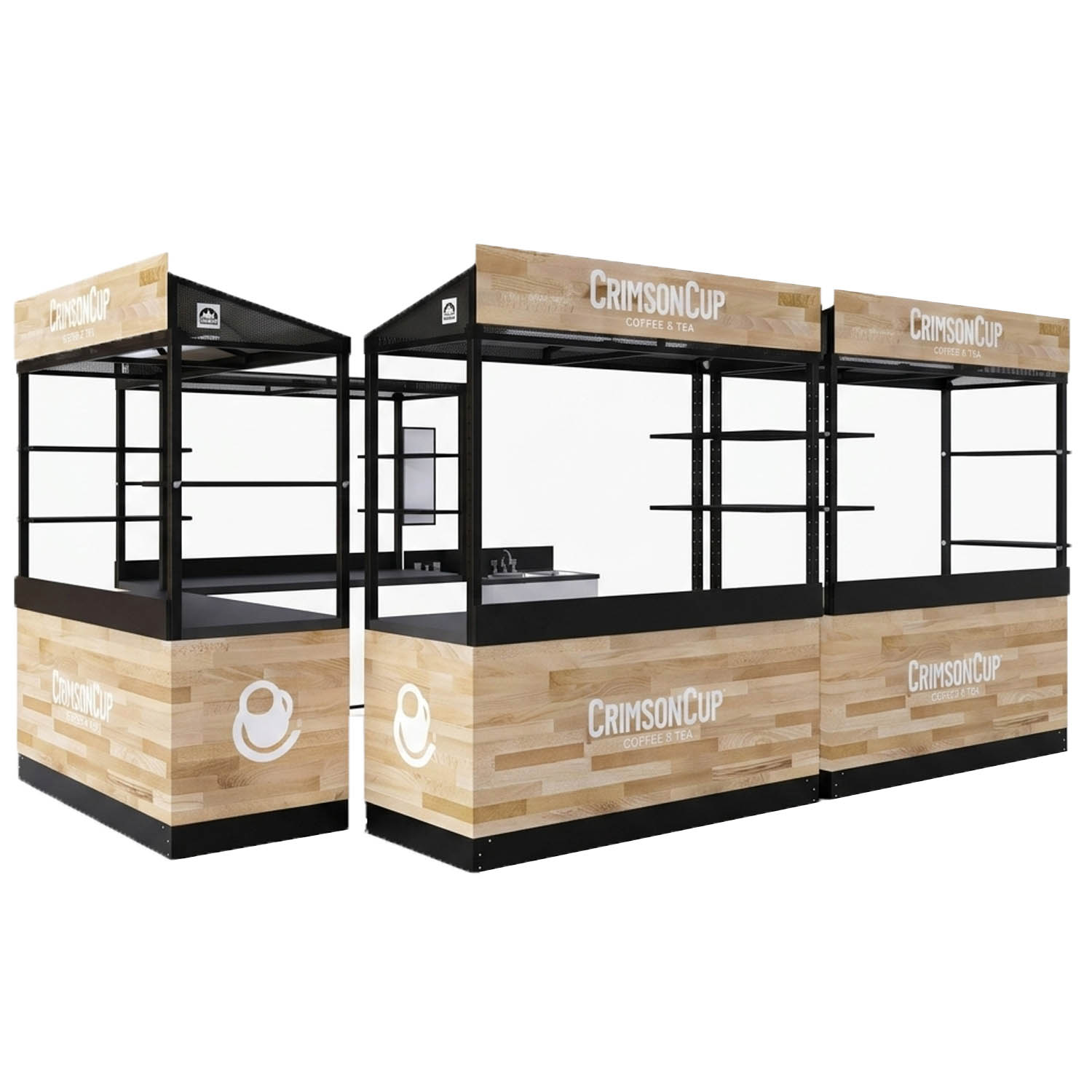

Triple Espresso Kiosk
$19,791.00
A professional, high-throughput mobile espresso platform engineered for high-traffic venues like airports, malls, and stadiums. Built with a heavy-duty carbon steel chassis, this modular three-cart system provides the ultimate multi-barista workspace to maximize daily beverage sales.
- Deployment: Indoors or covered outdoor thoroughfares.
- Capacity: Multi-barista high-volume configuration.
- Mobility: Industrial locking casters for fast deployment.
In stock
High-Volume Enterprise Vending Assembly
The Triple Espresso Kiosk is a premier, multi-unit mobile platform engineered for peak-volume beverage service in stadiums, international airports, and high-traffic transit hubs. This industrial-scale system allows operators to establish a massive retail footprint with the flexibility of a mobile configuration.
Modular Scalability
Featuring a 3-unit modular design, this system optimizes workflow by providing ample space to separate espresso extraction, pastry or beverage preparation, and point-of-sale operations into specialized zones. It is the definitive solution for brands requiring a permanent “kiosk-style” presence with rapid-deployment capabilities.
Note: Professional appliances and espresso machinery are shown for scale and are not included.
Integrated Espresso & Plumbing Framework
Water Infrastructure: Double Faucet – 4 Basin Sink (NSF Approved).
Water Tanks: Fresh water five-gallon tank and seven-gallon grey water tank.
Appliances: 2.6 Gallon Hot Water Heater (up to 149 deg).
Faucets: 1 for hand-wash and 1 for the 3 additional sinks.
Hardware: Espresso upgrade kit with tank, pump, fittings, and auto-shut-off pump feature.
Safety Mechanics: Integrated backflow protection and pressure valve.
Basin Sizing: Utensil basin sizes 24”L x 9”W x 6”D; Hand wash sink 24”L x 6”W x 6”D.
Heavy-Duty Construction & Mobility
Frame Structure: Powder-coated steel fabrication with a heavy-duty carbon steel base.
Countertops: Thick, scratch-resistant ABS counter-top and food-safe metal counter surfaces.
Mobility Setup: Heavy-duty locking casters designed to make the unit lightweight and easy to transport.
Environmental Rating: Engineered specifically for optimized indoor use.
Storage, Merchandising & Security
Inventory Space: Steel base with lockable door for secure storage (can alternatively be utilized as a cooler).
Appliance Fit: Built to seamlessly fit standard commercial fridges.
Visual Merchandising: Detachable grid-wall display (compatible with hundreds of grid-wall attachments), twelve movable shelves (adjustable up and down), and integrated menu holders.
Utilities & Logistics
Electrical Configuration: Optional Light Module under the canopy.
Canopy Build: Easy pop-off canopies.
Fulfillment Speed: Next-day shipping available straight to the USA.
| Component Group | Industrial Specification |
|---|---|
| Physical System Footprint | Total System (3-Unit): 206.46″ W x 31.10″ D x 88″ H Portable Sink Module: 39″ W x 18″ D x 35″ H Locking Cabinets (x3): 33.86″ W x 25″ H Menu Display Boards: 10″ W x 24″ H |
| Material & Chassis Details | Structural Frame: Industrial 30mm x 30mm square tube carbon steel Chassis Plating: 0.8mm thick heavy-duty metal panels (Side, Front, Back) Merchandising Grid: 4mm diameter wire; 2″ x 2″ industrial spacing |
| Canopy Engineering | 0.8mm thick metal plate roof; 20mm x 20mm square tube frame; 0.8mm perforated plate detailing |
| Mobility & Load Distribution | 12-wheel mobility rig; 5-inch industrial wheels with 6 dual-action locking brakes |
| Commercial Warranty | Standard one (1) year limited manufacturer’s warranty on structural components |
| Feature | Metric Specification | EU Compliance Detail |
|---|---|---|
| Main Footprint | W: 5244 mm / D: 790 mm / H: 2235 mm | Expansive three-station width optimized for multi-barista high-volume throughput. |
| Hygiene Station | W: 990.6 mm / D: 457.2 mm / H: 889 mm | Self-contained 4-basin station ensures full compliance with EC 852/2004 hygiene standards. |
| Work Surfaces | Powder-Coated Steel (Food-Grade) | Non-porous, chemically resistant surfaces compliant with (EC) No 1935/2004. |
| Chassis Construction | High-Tensile Carbon Steel Frame | Reinforced 30mm framework engineered for maximum stability under heavy commercial loads. |
| Mobility System | 127 mm (5″) Industrial Casters | Heavy-duty multi-wheel system with industrial locking brakes for secure semi-permanent placement. |
| Canopy & Display | Triple Gridwall / Metal Canopy | Professional perforated metal system designed for high-visibility branding and menu placement. |
Regulatory Statement: “The Triple Espresso Kiosk System utilizes high-tensile carbon steel and food-contact rated powder coatings that comply with Regulation (EC) No 1935/2004. This industrial-scale barista assembly is engineered to meet EC 852/2004 hygiene requirements, providing a fully compliant, high-throughput solution for commercial venues within the EEA.”
